CLARIANT Graphtol Red LG Pigment Red 53:1
Products
Latest News
Product Details
CLARIANT Graphtol Red LG
Index number: pigment red 53:1
Chemical structure: mononitroazo pigment
Clariant CLARIANT Graphtol Red LG is an economical, high-temperature resistant, environmentally friendly yellow-red pigment. It features a vibrant color and excellent coloring strength, with good heat stability and acid-alkali resistance. However, its lightfastness is average, making it unsuitable for applications requiring high lightfastness. The environmental compliance of Clariant LG red organic pigment meets the European EN71-3-1994 standard, making it suitable for coloring consumer goods, food packaging, and toys. When another product, Clariant LC red, does not meet the safety regulations for consumer goods, food packaging, and toys due to its Ba barium ion content, Clariant LG red is recommended as an environmentally friendly alternative.
Physical and Chemical Properties
| Density | [g/cm³] | 1.86 |
| Bulk volume | [l/kg] | 4.0 |
| Average particle size | [nm] | 104 |
| Alkali resistance | 5 | |
| Acid resistance | 5 | |
| Specific surface | [m2/g] | 49 |
Fastness Properties
| PE | PP | PVC | PS | ABS | PC | ||
| SD 1/3 | [g/kg] | 1.6 | 1.8 | 7.1 | 1.7 | 1.8 | 1.7 |
| Hue angle | [°] | 22.1 | 23.4 | 23.8 | 22.0 | 22.9 | 21.5 |
| Chroma | 64.2 | 64.2 | 64.0 | 62.9 | 57.4 | 62.2 | |
| Light fastness (Full shade) | 4 | 3 | 3-4 | 4 | 3 | 3 | |
| Light fastness (Reduction) | 2 | 2-3 | 2-3 | 3-4 | 2-3 | 2-3 | |
| Heat resistance | [°C] | 270 | 270 | – | 300 | 260 | 310 |
| Weathering fastness | – | – | – | – | – | – |
Additional Technical Properties
| Suitable for low warping applications | Suitable |
| Cable sheathing | Not suitable |
| Fastness to bleeding in PVC-P | 4-5 |
Applications
| Suitable | Limited suitability | Not suitable |
| PO | PUR | POM |
| PVC/ Rubber | PA | |
| PS/ ABS | PBT | |
| PC | PET Fiber | |
| PP Fiber | PA Fiber | |
| PAN Fiber |

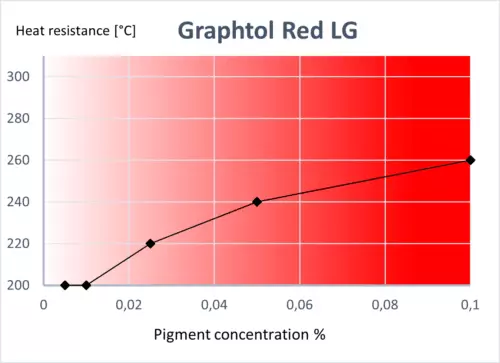

Limiting concentration in HDPE

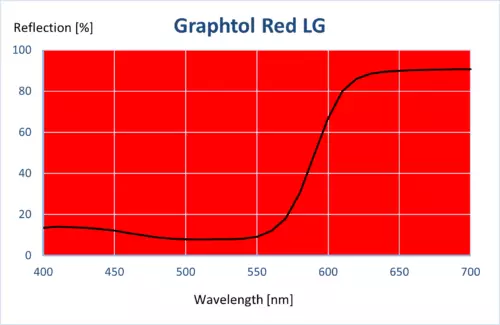

Reflection curve
